Wholesale Pro Sharpy 7R 230W Beam Moving Head Stage Lights for Sale
230w 7r sharpy beam moving head
7r 230w sharpy beam
230w 7r beam

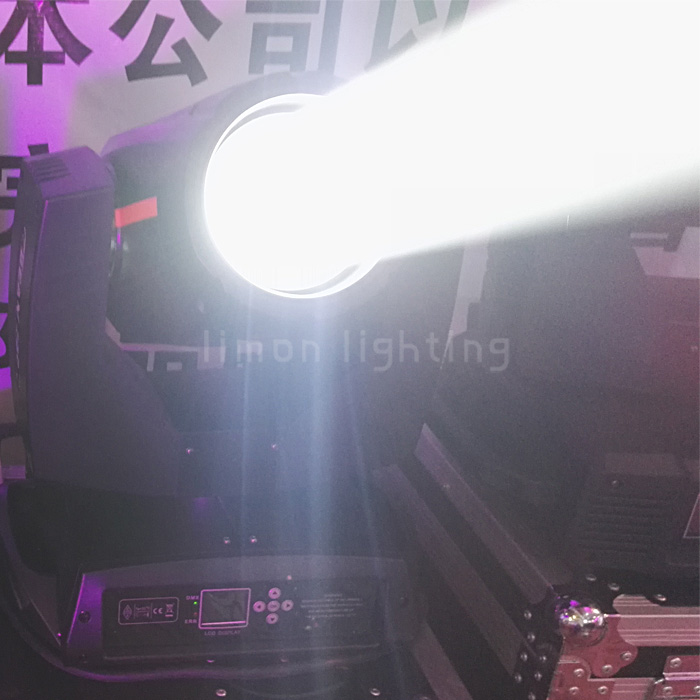

230W 7R Sharpy Beam is a professional moving head beam fixture with
a 230W Yodn 7r or Osram 230w bulb that produces a razor-sharp beam,
motorized focus and motorized beam angle(0~4-degrees).
Equipped with 17 static gobos plus open, 14colors plus white,
built-in a 16-facet rotating prism or an 8+16 rotating prism. Frost
filter for a wash effect.
230W 7R Sharpy Beam has Power in and out connectors to daisy chain
the power, as well as 3-pin DMX In/Out to transmit a DMX signal
from one fixture to the next. It’s designed for high end
installations and rental applications.
Specifications
| Model | LM-MHB230 |
| Input Power | AC100-240V 50/60 Hz |
| Lamp | Osram 230 or YODN 7R(2000 hours, color temperature: 8000K, Luminous
flux: 7,950 lm) |
| Power | 189w |
| Gobo wheel | 17 fixed gobos+ open |
| Color Wheel: | 14 fixed colors +open with rainbow effect. |
| Prism | 16-facet rotation prism or one 8+16 facet prism |
| Lens | 3 optical lens |
| Focus | electronic focus |
| Beam Angle | 0-4° |
| Dimmer | 0-100% smooth linear dimming |
| Strobe | 1-25t/s high speed LED shutter effect with variable speed |
| DMX Channel | 16CH/20H |
| Control Mode | DMX 512, Master/Slave, Sound active, Auto run. |
| Pan | 540 degree Electric correction |
| Tilt | 270 degree fine Electric correction |
| Motor | 13PCS silent stepper motor |
| Display | Touch Screen or LCD display |
| IP Grade | IP20 |
| Product Size | 29.5x20x23cm |
| N.W | 16KG |
| Packing Size(1in1) | 46x42x55cm |
| G.W | 18KG |
Pan/Tilt Resolution: 16 bit
0-100% linear dimmer
Mechanical shutter and adjustable speed strobe effect
Rapid and extensive pan and tilt movements
DMX signal connection: 3 and 5 pin XLR input and output
Software uploads through DMX input
Electronic ballast fitted as standard
Body
Aluminum structure with die-cast plastic cover.
Two sides handle for transportation.
Device locking PAN and TILT mechanisms for transportation and
maintenance. |
Advantages
1. Long history and stable production
We are professional in stage lighting fixtures more than 10 years,
80% products are for exporting. Our main market is in European,
South America and American countries, Southeast Asia, African
countries.
We have 10 producing lines; can arrange the shipment to you in
time.
2. Strict quality control system.
We have CE certificate, all of our technician are professional, and
they are strict on quality control. Before mass order, sample order
is welcomed. Ensure the quality is the same as bulk quantity.
3. Prompt delivery
We have good cooperation with many professional forwarders, can
send you the products in a safe way once you confirm the order.
4. Better Payment term.
PayPal, T/T, Western Union
About Us
Limon Lighting is a professional stage lighting manufacturer. Today
we offer stage lightings include sharpy beam moving head light,
moving head LED Fixture, LED Matrix light, LED Par Light, outdoor
LED wall washer, LED pixel bar light, laser, DMX controller, Smoke
machine, LED dance floor, etc.
Limon stage lighting equipment are perfect for rental, event,
exhibitions, concert. Widely used in stage, night club, bar,
theater, studio, and entertainment spaces.
At Limon Stage Lighting, we believe in "Quality, Innovation,
Efficiency & Partnership" and work to make sure that our partner
and friend is always satisfied. What we are doing is offering
premium stage lights at non-premium prices.
We offer best Pre-sales service and after-sales service. To help
you choose the stage lighting that’s right for you.
